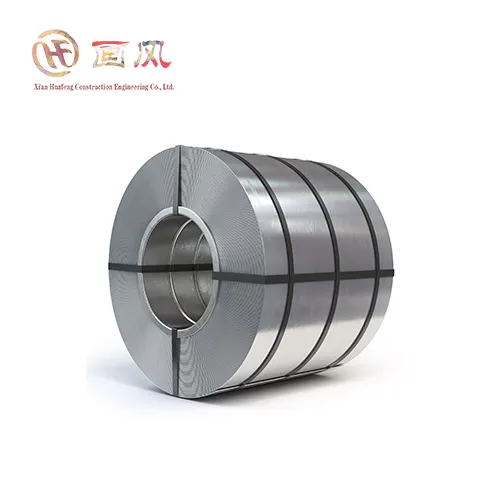

1050 Aluminium Coil

1050 Aluminium Coil

Khoom npe: aluminium 1050
Kub: H42, H44, H46, H48
Ua tiav: PVDF / PE
3 factories & 7 cov kab ntau lawm & ntau tshaj 40 lub tshuab
Thickness: 0.10mm ~ 4mm
Dav: 1000mm ~ 1,550mm
Txuj: ASTM B209 / JIS H4000 / DIN EN485 / GB / T3880
Muaj peev xwm muab khoom: 10000 Tuj / hli
Kev pab lub neej: 30- xyoo warranty
Xim: RAL thiab lwm yam xim customized
Lub sij hawm xa tuaj: 15-20 hnub
Xa kev nug

Kev piav qhia

Technical Parameters

1050 aluminium coil yog dab tsi?



1050 txhuas kauj yog ib feem ntawm 1000 series ntawm txhuas, uas paub txog nws cov purity siab thiab zoo heev corrosion kuj. Nrog rau qhov tsawg kawg nkaus ntawm txhuas cov ntsiab lus ntawm 99.5%, cov hlau no yog qhov ua tau zoo ntawm nws cov thermal thiab hluav taws xob conductivity, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas xav tau kev hloov hluav taws xob zoo thiab kev ua haujlwm hluav taws xob.



1050 aluminum coil



Khoom Paub meej

Khoom npe

1050 Aluminium Coil

Thickness

0.10mm ~ 4mm

Dav

1000mm ~ 1,550mm

Ntev

Coiled

Kub

H42, H44, H46, H48

Txheej

PE/PVDF

Txuj

ASTM B209 / JIS H4000 / DIN EN485 / GB / T3880

Nto

Bright, polished, plaub hau kab, txhuam, xuab zeb moj tej tawg, checkered, embossed, etching, thiab lwm yam

Tshuaj muaj pes tsawg leeg ntawm 1050 txhuas
Cov ntsiab lus

Mg:

Zn:

Mn:

Ti

V

Fe
Cov ntsiab lus

0.05

0.05

0.05

0.03

0.05

0.40

mechanical zog



Kub Thickness / hli Tensile zog
Rm (Mpa)		 Yield zog
Rp 0.2 (Mpa)		 Elongation Loj dua lossis sib npaug
A(%) mm A(%)
O >0.20~0.50 60一100 - 15 -
>0.50~0.80 20 -
>0.80~1.50 Ntau dua lossis sib npaug li 20 25 -
>1.50~6.00 30 -
>6.00~80.00 28 28
H16 >0.20~0.50 120-150 - 1 -
>0.50~0.80 Ntau dua lossis sib npaug li 85 2 -
>0.80~1.50 3 -
>1.50~4.00 4 -
H18 >0.20~0.50 Ntau dua lossis sib npaug li 130 - 1 -
>0.50~0.80 2 -
>0.80~1.50 3 -
>1.50~3.00 4 -

product-769-771

Cov yam ntxwv tseem ceeb ntawm 1050 Aluminium Coil



1. Cov thermal conductivity zoo heev: Lub 1050 aluminium coil yog tsim los ua kom muaj cua sov zoo, ua kom zoo rau kev siv cov khoom siv hluav taws xob thiab lwm yam kev tswj xyuas thermal.



2. High Electrical Conductivity: Cov alloy no kuj yog cov conductive heev, uas yog ib qho tseem ceeb rau cov hluav taws xob conductors thiab cov khoom uas yuav tsum tau txhim khu kev qha.



3. Corrosion Resistance: Lub ntuj oxide txheej uas cov ntaub ntawv ntawm txhuas muab kev tiv thaiv zoo heev rau corrosion, ua kom lub neej ntev thiab kav ntev hauv ntau qhov chaw.



4. Lub teeb yuag: Txhuas paub txog nws cov khoom sib sib zog nqus, uas tuaj yeem txo qhov hnyav tag nrho ntawm cov khoom yam tsis muaj kev cuam tshuam lub zog.



5. Ntau yam kev siv: Lub 1050 txhuas coil tuaj yeem siv rau ntau yam kev siv, los ntawm cov khoom siv kho kom zoo nkauj rau cov khoom siv, ua rau nws xaiv ntau yam rau cov tuam txhab.

Daim ntawv thov

1050 txhuas coils feem ntau yog siv rau hauv ntau yam kev siv, xws li cov khoom siv tshuaj thiab khoom noj khoom haus, cov khoom siv kho kom zoo nkauj, cov khoom siv teeb pom kev zoo, thiab cov reflectors. Vim lawv zoo heev thermal thiab hluav taws xob conductivity, lawv kuj tau siv nyob rau hauv kev tsim ntawm tshav kub exchangers, nameplates, thiab hluav taws xob conductors.



  • Cov Khoom Siv Tshuaj thiab Khoom Noj Khoom Noj: Cov khoom siv tshuaj tiv thaiv corrosion thiab tsis muaj qhov cuam tshuam ntawm txhuas ua rau nws yog cov khoom siv zoo tshaj plaws rau cov khoom siv hauv tshuaj thiab khoom noj. Lub 1050 txhuas coil feem ntau yog siv hauv cov tso tsheb hlau luam, cov kav dej, thiab lwm yam khoom uas tuaj yeem cuam tshuam nrog ntau yam khoom.



  • Kho kom zoo nkauj Trim: Qhov zoo nkauj zoo nkauj ntawm txhuas, ua ke nrog nws lub peev xwm los ua kom zoo nkauj thiab ua tiav, ua rau 1050 aluminium coil yog ib qho kev xaiv nrov rau cov hniav trim hauv architecture thiab sab hauv tsim.



  • Cov khoom siv teeb pom kev zoo: Cov khoom siv hluav taws xob ntawm aluminium txhim kho cov khoom siv teeb pom kev zoo. Lub 1050 txhuas coil feem ntau yog siv rau hauv cov khoom siv hluav taws xob thiab lwm yam teeb pom kev zoo kom ua kom lub teeb pom kev zoo.



  • Thaum tshav kub kub Exchangers: Vim nws cov thermal conductivity zoo heev, 1050 txhuas coil yog siv dav hauv kev tsim cov khoom siv hluav taws xob sib txawv, qhov kev hloov hluav taws xob zoo yog qhov tseem ceeb.



  • Nameplates thiab Hluav Taws Xob Cov Hluav Taws Xob: Cov hluav taws xob hluav taws xob siab ntawm cov hlau no ua rau nws haum rau cov npe thiab ntau yam khoom siv hluav taws xob, kom ntseeg tau tias kev ua tau zoo hauv kev siv hluav taws xob.
product-626-458

Al 1050 h14 vs Al 3003 H18

Khoom npe

1050h14

ib 3003h18

Tensile yield zog (MPa)

75

186

Elongation ntawm tawg (%)

4-8

1-4

Modulus ntawm elasticity (GPa)

69

68.9

Melting kub (C)

645-657

643-654

Kev sib xyaw (wt%)

Al(z99.08),Mn(<0.05),

Cu(<0.05),Fe(<0.4),

Si(Less than or equal to 0.25), Zn(<0.07),

Mg(Less dua los yog sib npaug rau 0.05), Ti(<0.05),

Lwm yam ({0}}.03)

Al(96.7-99),Mn(1-1.5).

Cu(005-0.2), Fe(<0.7)

Si(Less than or equal to 0.6), Zn(<0.1),

Lwm yam (0.15)
Vim li cas thiaj xaiv Peb 1050 Aluminium Chev?

Raws li ib tug ua 1050 txhuas coil Hoobkas, peb txaus siab rau peb tus kheej ntawm kev xa cov khoom zoo uas ua tau raws li cov kev xav tau ntawm peb cov neeg siv khoom. Nov yog ob peb lub laj thawj vim li cas koj yuav tsum xaiv peb 1050 txhuas kauj:



  • Quality Assurance: Peb cov txheej txheem tsim khoom ua raws li cov qauv kev tswj hwm nruj, kom ntseeg tau tias txhua lub kauj ua tau raws li qhov tshwj xeeb tshaj plaws.



  • Customization Options: Peb nkag siab tias cov ntawv thov sib txawv xav tau cov kev qhia tshwj xeeb. Peb pab neeg tau npaj ua haujlwm nrog koj los kho qhov ntev, tuab, thiab ua tiav ntawm 1050 txhuas kauj kom haum rau koj cov kev xav tau tshwj xeeb.



  • Competitive Pricing: Peb muab cov nqi sib tw yam tsis muaj kev cuam tshuam rau qhov zoo. Peb cov txheej txheem ntau lawm tso cai rau peb muab cov kev daws teeb meem zoo rau peb cov neeg siv khoom.



  • Kev Pabcuam Kws Tshaj Lij: Peb pab neeg muaj peev xwm nyob ntawm no los pab koj txog cov lus nug lossis kev txhawj xeeb uas koj muaj. Los ntawm kev xaiv cov khoom mus rau kev txhawb nqa, peb tau cog lus los muab kev pabcuam tshwj xeeb rau cov neeg siv khoom.



  • Sustainability: Aluminium yog cov khoom siv ruaj khov uas tuaj yeem rov ua dua yam tsis tau poob nws cov khoom. Los ntawm kev xaiv peb 1050 txhuas coil, koj tab tom xaiv ib puag ncig lub luag haujlwm.



1050 aluminium coil yog cov khoom siv ntau yam thiab txhim khu kev qha uas yog qhov tseem ceeb rau ntau yam kev siv. Nws zoo heev thermal thiab hluav taws xob conductivity, ua ke nrog nws cov corrosion kuj thiab lub teeb yuag zog, ua rau nws yog ib qho zoo tagnrho xaiv rau industries xws li tshuaj ua, khoom noj khoom haus, thiab hluav taws xob engineering.



Raws li kev ntseeg siab aluminium 1050 tus neeg muag khoom, peb mob siab rau muab cov khoom lag luam zoo uas ua tau raws li qhov xav tau ntawm peb cov neeg siv khoom. Txawm hais tias koj xav tau 1050 txhuas ntawv rau cov khoom siv kho kom zoo nkauj lossis cov coils rau cov ntawv thov kev lag luam, peb muaj cov kws tshaj lij thiab cov peev txheej los xa cov kev daws teeb meem rau koj.



Tshawb nrhiav qhov muaj peev xwm nrog peb 1050 txhuas coil thiab paub qhov txawv qhov zoo thiab kev ua tau zoo tuaj yeem ua rau koj cov haujlwm. Tiv tauj peb hnub no kom paub ntau ntxiv txog peb cov khoom thiab peb tuaj yeem pab koj li cas kom ua tiav koj lub hom phiaj.


Hoobkas


Architectural Art

6
1
2

3

4
5
Pob



8

9



Peb Qhov Zoo


Guaranteed zoo thiab them nyiaj rau qhov pom kev zoo

Cov khoom lag luam hmoov zoo 500 tuam txhab

Peb yog cov chaw muag khoom uas muaj daim ntawv cog lus nrog rau lub tuam txhab Fortune 500, raws li kev soj ntsuam los ntawm cov neeg sab nrauv sab nrauv.

Patents muab khoom plig (20+)

Peb muaj ntau tshaj 20 daim ntawv sau npe patents rau lub vov tsev thiab ntau yam kev lag luam thiab daim ntawv pov thawj computer software.

Xyoo hauv kev lag luam (7+)

Peb muaj peev xwm nkag siab zoo dua koj cov kev xav tau thiab muab cov lus qhia tshaj lij rau koj thiab cov khoom lag luam zoo thiab cov kev pabcuam.



Daim ntawv pov thawj
page-500-706
page-500-706
-EN 3
page-500-706
page-500-706
page-500-706
page-500-706
page-500-706
Cov lus nug nquag

Q: Koj ua li cas aluminium coils?

A: Aluminium coils tuaj yeem tau txais los ntawm cov txheej txheem smelting thiab kev hloov kho ntawm cov hlau muaj pes tsawg leeg, siv lub tshuab ua kab rov tav lossis los ntawm cov ntawv kub dov tau los ntawm lub tshuab ntsug casting tsis txuas ntxiv.

Q: Dab tsi yog cov xim ntawm cov xim pleev xim rau aluminium coils?

A: Cov xim ntawm cov xim pleev xim rau txhuas coils muaj xws li dawb, dub, liab, xiav, ntsuab, thiab lwm yam. Nws kuj tseem muaj ntau yam xim hlau thiab imitation ntoo grain los xaiv.

Q: Dab tsi yog qhov tseem ceeb ntawm cov xim coated aluminium coils?

A: Xim-coated aluminium coils yog siv dav hauv kev tsim cov ntaub thaiv phab ntsa, kho kom zoo nkauj sab hauv tsev thiab sab nraum zoov, hluav taws xob vaj huam sib luag, kev tsim cov ntawv tshaj tawm, cov ntaub ntawv ntim khoom thiab lwm yam. Nws lightness thiab corrosion kuj ua rau nws yog ib qho ntawm cov khoom zoo tagnrho.

Q: Dab tsi yog huab cua tsis kam ntawm cov xim coated aluminium coils?

A: Xim-coated aluminium coils muaj cov huab cua muaj zog los ntawm cov txheej txheem txheej tshwj xeeb, tuaj yeem tiv taus ultraviolet rays, kua qaub los nag thiab huab cua phem, thiab tswj cov xim ntev ntev.

Q: Dab tsi yog qhov txawv ntawm cov xim-coated aluminium coils thiab zoo tib yam txhuas coils?

A: Piv nrog cov txhuas coils zoo tib yam, xim-coated aluminium coils muaj xim zoo nkauj dua tom qab txheej txheej kho, thiab lawv kuj muaj kev tiv thaiv corrosion zoo dua thiab huab cua tsis kam.



Cim npe nrov: 1050 txhuas kauj, Tuam Tshoj 1050 txhuas kauj manufacturers
