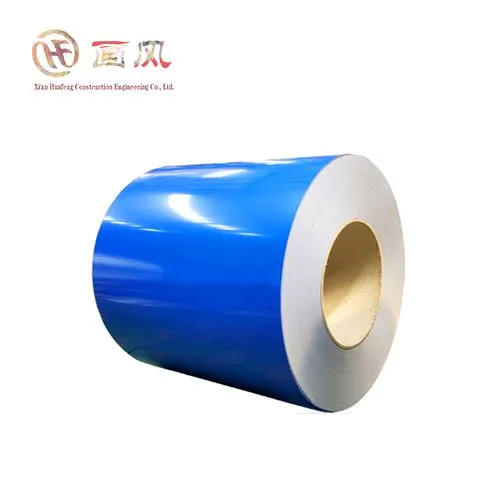

3105 Aluminium Ntawv
Kub: H42, H44, H46, H48
Ua tiav: PVDF / PE
3 factories & 7 cov kab ntau lawm & ntau tshaj 40 lub tshuab
Khoom siv: AA3105
Xim: RAL thiab lwm yam xim customized
Txuj: ASTM, DIN, JIS, BS, GB / T
Muaj peev xwm muab khoom: 10000 Tuj / hli
Kev pab lub neej: 30- xyoo warranty
Lub sij hawm xa tuaj: 15-20 hnub
Muab cov kev pabcuam customized: xim, qauv, tsim customization
Muab cov qauv dawb
Kev piav qhia
Technical Parameters
Koj puas xav tau cov khoom siv txhim khu kev qha thiab ntau yam rau koj cov kev xav tau tsim khoom? Saib tsis muaj ntxiv tshaj qhov3105 aluminium ntawv.Cov khoom siv aluminium alloy no yog siv los tsim ntau yam khoom, nrog rau cov phaj, tso tsheb hlau luam, kav dej, rooj tog zaum, thiab lwm yam. Nrog nws cov khoom tshwj xeeb thiab ua haujlwm ntev, 3105 txhuas coil yog qhov kev xaiv zoo tshaj plaws rau ntau yam kev siv.
3105 Aluminium Sheet yog dab tsi?
Cov3105 aluminium ntawvyog ib qho zoo aluminium alloy uas paub txog nws zoo heev formability, corrosion kuj, thiab vuam yam ntxwv. Nws yog 98% ntshiab aluminium alloy nrog cov khoom me me los txhim kho nws lub zog, ua rau nws yog ib qho khoom siv zoo tshaj plaws rau ntau yam kev siv. Txawm hais tias koj nyob hauv kev tsim kho, tsheb, lossis kev lag luam tsim khoom, 3105 aluminium alloy yog ib qho kev txhim khu kev qha thiab raug nqi rau koj cov kev xav tau ntau lawm.
khoom parameter
| Alloy |
AA3105,1060 txhuas kauj, 5052 txhuas kauj |
|
Thickness |
0.10mm ~ 1.5mm |
|
Dav |
1000mm ~ 1,550mm |
|
Ntev |
Coiled |
|
Kub |
H42, H44, H46, H48 |
|
Txheej |
PE/PVDF |
| Muaj peev xwm muab khoom | 10000 Tons / hli |
| Kev pab lub neej | 30- xyoo warranty |
| Lub sij hawm xa tuaj | 15-20 hnub |
| Muab kev pabcuam customized | xim, qauv, tsim customization |
| Muab cov qauv dawb |
Cov yam ntxwv tseem ceeb ntawm 3105 txhuas ntawv
3105 txhuas ntawv muaj ntau yam nta uas ua rau nws muaj kev xaiv nrov rau cov tuam ntxhab thiab cov khoom siv.
Nov yog qee qhov ntawm nws cov yam ntxwv tseem ceeb:
1. Zoo heev Corrosion Resistance:Lub 3105 aluminium alloy qhia tau zoo heev corrosion kuj, ua rau nws haum rau siv nyob rau hauv ntau qhov chaw, xws li marine thiab industrial daim ntaub ntawv.
2. Superior Formability:Qhov no aluminium alloy tuaj yeem tsim tau yooj yim rau hauv cov duab sib txawv thiab qhov ntau thiab tsawg yam tsis muaj kev cuam tshuam nws cov qauv kev ncaj ncees, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ntau yam kev tsim khoom.
3. Welding yam ntxwv:3105 pleev xim rau aluminium ntawv tuaj yeem yooj yim welded siv ntau txoj kev, tso cai rau seamless kev koom ua ke rau hauv cov txheej txheem sib txawv.
4. Versatility:Los ntawm daim hlau thiab tso tsheb hlau luam mus rau cov rooj tog zaum thiab cov khoom siv hauv tsheb, 3105 aluminium coil yog cov khoom siv ntau yam uas tuaj yeem siv rau ntau yam kev siv.
5. Lub zog thiab kav ntev:Nrog cov khoom siv me me los txhim kho nws lub zog, 3105 aluminium coil muaj kev ruaj khov thiab kev ntseeg tau zoo, ua kom muaj kev ua haujlwm ntev ntev hauv ntau yam kev siv.
Tshuaj muaj pes tsawg leeg ntawm 3105 Aluminium Sheet
3105 txhuas yog 3000 series txhuas alloy: lub ntsiab alloy ntxiv yog manganese, uas txhim kho lub zog ntawm alloy.
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Lwm tus: Txhua |
Lwm tus: Tag nrho |
Al: Min. |
|
3105 |
0.60 |
0.70 |
0.30 |
0.3~0.8 |
0.2~0.8 |
0.20 |
0.40 |
0.10 |
0.05 |
0.15 |
seem |
0.3% tooj liab ntxiv rau 3105 aluminium alloy, yog li cov conductivity zoo, thiab cov conductivity tuaj yeem ncav cuag 41%;
Txhua yam khoom ntawm 3105 txhuas coils
| Tensile zog | 100-150 MPa. Qhov no txhais tau tias nws muaj lub zog loj thiab tuaj yeem ua tau raws li qhov yuav tsum tau muaj ntawm ntau daim ntawv thov. |
| Yield zog | 80-110 MPa. Qhov no sawv cev rau nws lub peev xwm los pib yas deformation nyob rau hauv cov xwm txheej muab. |
|
Ductility |
3105 aluminium coil muaj qhov zoo ductility, thiab nws qhov elongation tuaj yeem ncav cuag ntau dua 20%, uas txhais tau hais tias nws tuaj yeem ua rau qee yam ntawm cov yas deformation thaum ua thiab tsim nyog rau ntau yam txheej txheem. |
| Hardness | 20-30HB, uas ua rau nws muaj kev ua haujlwm zoo thiab hnav tsis kam. |
3105 aluminium coils zoo tshaj hauv cov khoom siv kho tshuab, muab lub zog zoo, ductility thiab processability, ua rau lawv haum rau ntau yam kev tsim khoom thiab kev tsim kho.
qhov zoo
- Zoo heev corrosion kuj
- Zoo hluav taws xob conductivity
- Zoo mechanical zog
- High formability thiab plasticity
Qhov tsis zoo
- Tsis kub kho tau tsuas yog annealing
- Tsis zoo machinability nyob rau hauv txias hardened xeev
Dab tsi yog qhov txawv ntawm 3003 thiab 3105 txhuas?
Lub 3105 alloy zoo ib yam li 3003, tab sis muaj qhov dav dav rau tooj liab, magnesium, chromium, titanium, thiab zinc alloying ntsiab. Vim tias qhov kev zam dav dav tau tso cai, 3105 feem ntau yog siv rau hauv cov ntaub ntawv tseem ceeb hauv tsev xws li vov tsev, siding, flashing, thiab ductwork.
Painted 3105 Painted aluminium yog muaj nyob rau hauv ntau yam xim qauv los tsim ib qho zoo ib yam. Xi'an Huafeng Kev Tsim Kho kuj tuaj yeem muab ntau yam xim kev cai kom phim koj lub tuam txhab hom.
Vim li cas thiaj xaiv 3105 Aluminium Coil?
- Nqi-zoo: 3105 txhuas coil muab cov nqi tsim nyog rau cov tuam txhab thiab cov neeg tsim khoom, muab kev ua tau zoo ntawm tus nqi sib tw.
- Environmental Friendly: Txhuas yog cov khoom siv ruaj khov thiab rov ua dua tshiab, ua rau 3105 aluminium ntawv xaiv ib puag ncig zoo rau koj cov kev xav tau ntau lawm.
- Kev Kho Yooj Yim: Nrog nws cov kev tiv thaiv corrosion zoo heev, 3105 pleev xim rau aluminium ntawv yuav tsum tau saib xyuas tsawg, txo cov nqi mus sij hawm ntev thiab ua kom ntseeg tau tias kev ua tau zoo.
- Customization Options: Lub 3105 txhuas kauj tuaj yeem pleev xim tau yooj yim thiab coated kom tau raws li cov qauv tsim thiab kev zoo nkauj, muab kev xaiv tsis kawg rau koj cov khoom.
- Kev Pabcuam Muaj Peev Xwm: Raws li kev siv dav siv aluminium alloy, 3105 txhuas yog yooj yim los ntawm cov neeg muag khoom muaj npe, ua kom ntseeg tau zoo thiab txhim khu kev qha rau koj cov kev xav tau ntau lawm.
3105 pleev xim rau txhuas ntawv yog ib qho tseem ceeb ntawm kev tsim khoom hauv ntau qhov kev lag luam, suav nrog:
--Lub cev tsheb
--Cov tsheb tub yees
-- Tsheb thauj neeg mob
-- chav txias
--Plaub tsis plam
--Stair treads
--Cov kav dej hauv vaj tse thiab qhov chaw qis qis
--Kev tsim vaj tsev txawb thiab lub tsev sab nrauv
--Lub raj mis thiab lub kaus mom
--Fender structures
-- Tsheb txaj npog
--Cov khoom siv hauv tsev
--Cov rooj tog thiab khoom siv
-- Cov khoom siv tshuaj thiab khoom noj khoom haus
--Kev siv dej hiav txwv thiab kev lag luam
Txawm hais tias koj nyob hauv kev tsim kho, tsheb, lossis kev tsim khoom lag luam, 3105 aluminium coil yog ib qho kev txhim khu kev qha thiab cov nqi tsim nyog rau koj cov kev xav tau ntau lawm.
1. Zoo corrosion kuj:
3105 aluminium coil muaj qhov zoo corrosion kuj, tshwj xeeb tshaj yog nyob rau hauv daim ntawv thov siv nyob rau hauv kev sib cuag nrog zaub mov los yog tshuaj.
2.Excellent forming kev ua tau zoo:
3105 aluminium coil yog ib qho yooj yim rau kev tsim thiab txheej txheem, thiab tsim nyog rau kev ua cov txheej txheem xws li sib sib zog nqus nqus, dabtsi yog khoov thiab dov.
3.Suitable rau lub ru tsev thiab sab nrauv phab ntsa kho kom zoo nkauj:
Vim nws cov huab cua tsis zoo thiab tsim tau, 3105 txhuas coil feem ntau yog siv rau kev kho kom zoo nkauj ntawm lub tsev ru tsev thiab sab nrauv phab ntsa.
4. Ntim Ntim:
Vim nws txoj kev nyab xeeb thiab tsis muaj tshuaj lom, 3105 aluminium coil kuj tau siv dav hauv kev lag luam ntim khoom noj, xws li tuaj yeem ua thiab ntim cov thawv.
Qhov twg Nrhiav 3105 Aluminium Coil
Yog tias koj xav tau cov khoom zoo 3105 txhuas coil rau koj cov kev xav tau ntawm kev tsim khoom, nws yog ib qho tseem ceeb rau kev koom tes nrog tus neeg muag khoom muaj npe thiab txhim khu kev qha. Nrhiav ib tus neeg muag khoom uas muaj ntau yam khoom siv txhuas, suav nrog 3105 txhuas coil, thiab muaj cov ntaub ntawv pov thawj ntawm kev xa cov khoom zoo rau lawv cov neeg siv khoom. Huafeng yog koj qhov zoo tshaj plaws3105 aluminium ntawv xa khoom.
Thaum xaiv ib tus neeg muag khoom, xav txog lawv cov kev paub hauv kev lag luam, cov ntawv pov thawj, cov txheej txheem tswj kom zoo, thiab kev pabcuam rau cov neeg siv khoom. Ib tus neeg muag khoom ntseeg siab yuav muab cov ntaub ntawv zoo rau koj thiab muab cov kev txawj ntse thiab kev txhawb nqa los pab koj ua qhov feem ntau ntawm 3105 aluminium coil rau koj cov ntawv tshwj xeeb.
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau
Xi'an Huafeng Siv Engineering Co., Ltd. tau tsim nyob rau hauv Shaanxi Province, Suav teb nyob rau hauv 2018. Nws yog ib tug kws tshaj lij lub tuam txhab tsom rau kev tsim, ntau lawm, muag thiab kev tsim cov hlau vov tsev, lub tsev kab hlau rhuav phab ntsa thiab lub tsev steel qauv enclosure. systems rau kev tsim kho tej yaam num. Cov khoom tseem ceeb yog: aluminium-magnesium-manganese daim hlau, titanium-zinc daim hlau, sawv seam hlau vov tsev ntawv, corrugated vov tsev ntawv, tiaj tus xauv vaj huam sib luag, ru tsev accessories, xim txhuas / hlau kauj, thiab lwm yam.
Qhov chaw hauv pem teb (㎡)
xyoo kev
Tag nrho cov zis txhua xyoo (units)
cov kws qhia ntawv
Peb lub Hoobkas
Kev xa khoom
Peb Qhov Zoo
Guaranteed zoo thiab them nyiaj rau qhov pom kev zoo
Cov khoom lag luam hmoov zoo 500 tuam txhab
Peb yog cov chaw muag khoom uas muaj daim ntawv cog lus nrog rau lub tuam txhab Fortune 500, raws li kev soj ntsuam los ntawm cov neeg sab nrauv sab nrauv.
Patents muab khoom plig (20+)
Peb muaj ntau tshaj 20 daim ntawv sau npe patents rau lub vov tsev thiab ntau yam kev lag luam thiab cov ntawv pov thawj hauv computer software.
Xyoo hauv kev lag luam (7+)
Peb tuaj yeem nkag siab zoo dua koj cov kev xav tau thiab muab cov lus qhia tshaj lij rau koj thiab cov khoom lag luam zoo thiab cov kev pabcuam.
Daim ntawv pov thawj
Cov lus nug nquag
Tib neeg-oriented, Kev Tsim Kho thiab Kev Tsim Kho Tshiab, Kev Sib Koom Tes
Q: 1.Dab tsi txog koj tus nqi?
A: Peb muaj peb lub Hoobkas kom peb tuaj yeem muab tus nqi zoo tshaj rau koj
Q: 2.Koj lub peev xwm ntau lawm yog dab tsi?
A: Peb muaj ob txoj kab ntau lawm thiab ntau tshaj 20 lub tshuab rau kev tsim kho lub tsev hlau vov tsev phaj theem, Kaiping, shearing, dabtsi yog khoov, sib sau thiab txhuas alloy profile ua machinery ntau lawm
Q: 3.Koj lub sijhawm them nyiaj thiab lub sijhawm xa khoom yog dab tsi?
A: Peb lees txais T / T lossis L / C. Thiab Ali kev ruaj ntseg kev lag luam kuj tau txais. Raws li rau lub sijhawm khoom xa tuaj, peb xav tau ua cov phiaj xwm tsim khoom rau txhua qhov kev txiav txim. Feem ntau, nws yuav siv sijhawm 15- 30 hnub tom qab peb lees paub qhov kev txiav txim.
Q: 4.Yuav ua li cas txog cov qauv txiav txim?
A: Peb muab cov qauv dawb
Q: 5.Koj txoj cai tom qab muag yog dab tsi?
A: Peb muab cov khoom zoo tshaj plaws thiab kev pabcuam rau txhua tus neeg siv khoom. Peb yuav muab kev cob qhia online tom qab muag. Koj tuaj yeem tuaj xyuas peb lub Hoobkas.
Q: 6.Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas thiab muaj peb tus kheej cov kab ntau lawm, koj tuaj yeem yuav nrog kev ntseeg siab
