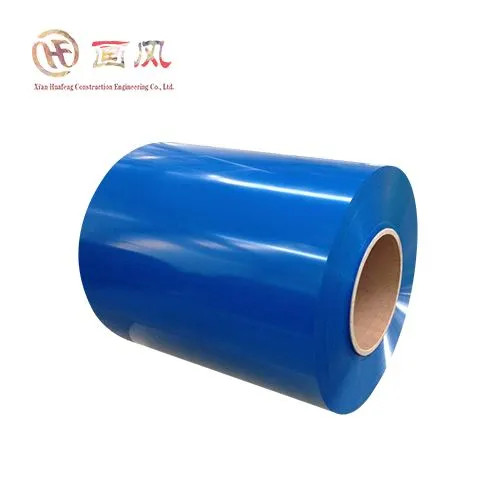

Anodized Aluminium Chev
Qib: 1000 series
Ua tiav: PVDF / PE
3 factories & 7 cov kab ntau lawm & ntau tshaj 40 lub tshuab
Kub: H42, H44, H46, H48
Xim: RAL thiab lwm yam xim customized
Txuj: ASTM B209 / JIS H4000 / DIN EN485 / GB / T3880
Muaj peev xwm muab khoom: 10000 Tuj / hli
Kev pab lub neej: 30- xyoo warranty
MOQ: 500 ㎡ / 3T
Lub sij hawm xa tuaj: 15-20 hnub
Kev piav qhia
Technical Parameters
Anodized aluminium coil yog cov khoom siv txhuas uas tau dhau los ua cov txheej txheem electrochemical hu ua anodization. Cov txheej txheem no txhim kho cov txheej txheem oxide ntuj nyob rau saum npoo ntawm aluminium alloy, thiab tuaj yeem txhim kho nws cov corrosion kuj thiab deg hardness.
Aluminium coil anodizing ua los ntawm 1050 aluminium alloy yog ib qho kev xaiv nrov rau ntau daim ntawv thov vim nws cov khoom zoo.1050 aluminium alloy yog cov khoom lag luam ntshiab txhuas nrog cov qauv zoo heev, siab corrosion kuj, thiab zoo hluav taws xob conductivity. Nws yog feem ntau siv rau hauv cov ntawv thov uas xav tau lub zog nruab nrab thiab ua haujlwm tau zoo.
Txheej txheem Anodization:Aluminium coil yog immersed nyob rau hauv ib tug acid electrolyte da dej thiab raug rau ib tug hluav taws xob tam sim no. Qhov no ua rau cov pa oxygen ions sib txuas nrog cov txhuas atoms ntawm qhov chaw, tsim cov txheej oxide tuab.
khoom parameter
|
Khoom npe |
1050 Aluminium Coil |
|
Thickness |
0.10mm ~ 4mm |
|
Dav |
1000mm ~ 1,550mm |
|
Ntev |
Coiled |
|
Kub |
H42, H44, H46, H48 |
|
Txheej |
PE/PVDF |
|
Txuj |
ASTM B209 / JIS H4000 / DIN EN485 / GB / T3880 |
|
Nto |
Bright, polished, plaub hau kab, txhuam, xuab zeb moj tej tawg, checkered, embossed, etching, thiab lwm yam |
Tshuaj muaj pes tsawg leeg ntawm 1050 txhuas
|
Mg |
Zn |
Mn |
Ti |
V |
Fe |
|
0.05 |
0.05 |
0.05 |
0.03 |
0.05 |
0.40 |
Lub ntsiab nta
Durability:
Cov txheej anodized yog qhov nyuaj thiab tiv taus corrosion, hnav, thiab abrasion dua li tsis kho cov txhuas. Qhov no ua rau nws haum rau cov ntawv thov uas durability tseem ceeb.
Environmental Impact:
Anodizing yog ib qho txheej txheem zoo ib puag ncig. Cov txheej anodized yog non-toxic thiab tsis tsim teeb meem by-products. Tsis tas li ntawd, aluminium yog cov khoom siv rov ua dua tshiab.
Aesthetic Appeal:
Anodized txhuas tuaj yeem dyed rau ntau yam xim ua ntej sib khi, tso cai rau ntau yam kev zoo nkauj tiav. Cov txheej anodized kuj muaj cov yam ntxwv ntawm cov xim hlau.
Thickness thiab Specifications:
Lub thickness ntawm cov txheej anodized tuaj yeem tswj tau thaum lub sijhawm ua haujlwm, feem ntau yog nyob ntawm ob peb micrometers mus rau ntau kaum micrometers, nyob ntawm seb daim ntawv thov.
Kev tu:
Lub anodized nto yog yooj yim los ntxuav thiab tswj. Nws kuj yog resistant rau cov ntiv tes thiab smudges, ua rau nws zoo tagnrho rau high-kov nto.
Zuag qhia tag nrho, anodized aluminium coils muab kev sib xyaw ua ke ntawm kev ua kom zoo dua qub, kev zoo nkauj yooj yim, thiab cov txiaj ntsig ib puag ncig, ua rau lawv xaiv ntau yam kev lag luam.
Al1050 h14 vs Al3003 H18
|
Khoom npe |
1050h14 |
1050h14 |
|
Tensile yield zog (MPa) |
75 |
186 |
|
Elongation ntawm tawg (%) |
4-8 |
1-4 |
|
Modulus ntawm elasticity (GPa) |
69 |
68.9 |
|
Melting kub (C) |
645-657 |
643-654 |
|
Kev sib xyaw (wt%) |
Al(z99.08),Mn(<0.05), Cu(<0.05),Fe(<0.4), Si(Less dua los yog sib npaug rau 0.25), Zn(<0.07),Mg(≤0.05), Ti(<0.05), Lwm yam ({0}}.03) |
Al(96.7-99),Mn(1-1.5). Cu({0}}05-0.2), Fe(<0.7) Si(Less than or equal to 0.6), Zn(<0.1), Lwm yam (0.15) |
Daim ntawv thov
1050 txhuas coils feem ntau yog siv rau hauv ntau yam kev siv xws li tshuaj lom neeg thiab khoom noj khoom haus, cov khoom siv kho kom zoo nkauj, cov khoom siv teeb pom kev zoo, thiab cov reflectors. Lawv kuj tseem siv rau hauv kev tsim cov khoom siv hluav taws xob, cov ntawv teev npe, thiab cov khoom siv hluav taws xob vim lawv cov thermal conductivity thiab hluav taws xob zoo heev.
Anodized aluminium coils yog siv nyob rau hauv ntau yam kev lag luam
- Kev tsim kho (rau vov tsev, cladding, thiab facades)
- Automotive (rau trim thiab lub cev panels)
- Electronics (rau casings thiab cua sov dab dej)
- Cov khoom siv (rau cookware thiab khoom siv).
mechanical zog
| Kub | Thickness / hli | Tensile zog Rm (Mpa) |
Yield zog Rp 0.2CMpa) |
Elongation Loj dua lossis sib npaug | |
| A% mm | A(%) | ||||
| O | >0.20一0.50 | 60~100 | - | 15 | - |
| >0.50一0.80 | 20 | - | |||
| >0.80 -1.50 | Ntau tshaj los yog sib npaug rau 20 | 25 | - | ||
| >1.50一6.00 | 30 | - | |||
| >6.00-80.00 | 28 | 28 | |||
| H16 | >0.20一0.50 | 120~150 | - | 1 | - |
| >0.50一0.80 | Ntau dua lossis sib npaug li 85 | 2 | - | ||
| >0.80-1.50 | 3 | - | |||
| >1.50一4.00 | 4 | - | |||
| H18 | >0.20-0.50 | Ntau dua lossis sib npaug li 130 | - | 1 | - |
| >0.50-0.80 | 2 | - | |||
| >0.80 -1.50 | 3 | - | |||
| >1.50-3.00 | 4 | - | |||
Stock coils duab
Vim li cas thiaj xaiv peb?
Tom qab xyoo ntawm txoj kev loj hlob, raws li lub tuam txhab Huafeng siab nkag mus rau nthuav qhia xa tawm network npog lub teb chaws thiab cov teb chaws loj thiab cheeb tsam thoob plaws ntiaj teb, peb muab cov neeg siv khoom nrog kev sib koom ua ke cov saw hlau los ntawm kev yuav khoom, ntau lawm, ncig, muag thiab tom qab muag. Aluminium Coil Anodizing Corp tshwj xeeb hauv kev muab cov khoom lag luam customized anodized aluminium coil kom tau raws li kev xav tau ntau yam.
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau
Xi'an Huafeng Siv Engineering Co., Ltd. tau tsim nyob rau hauv Shaanxi Province, Suav teb nyob rau hauv 2018. Nws yog ib tug kws tshaj lij lub tuam txhab tsom rau kev tsim, ntau lawm, muag thiab kev tsim cov hlau vov tsev, lub tsev kab hlau rhuav phab ntsa thiab lub tsev steel qauv enclosure. systems rau kev tsim kho tej yaam num. Cov khoom tseem ceeb yog: aluminium-magnesium-manganese daim hlau, titanium-zinc daim hlau, sawv seam hlau vov tsev ntawv, corrugated vov tsev ntawv, tiaj tus xauv vaj huam sib luag, ru tsev accessories, xim txhuas / hlau kauj, thiab lwm yam.
Qhov chaw hauv pem teb (㎡)
xyoo kev
Tag nrho cov zis txhua xyoo (units)
cov kws qhia ntawv
Peb lub Hoobkas
Pob
Peb Qhov Zoo
Guaranteed zoo thiab them nyiaj rau qhov pom kev zoo
Cov khoom lag luam hmoov zoo 500 tuam txhab
Peb yog cov chaw muag khoom uas muaj daim ntawv cog lus nrog rau lub tuam txhab Fortune 500, raws li kev soj ntsuam los ntawm cov neeg sab nrauv sab nrauv.
Patents muab khoom plig (20+)
Peb muaj ntau tshaj 20 daim ntawv sau npe patents rau lub vov tsev thiab ntau yam kev lag luam thiab daim ntawv pov thawj computer software.
Xyoo hauv kev lag luam (7+)
Peb tuaj yeem nkag siab zoo dua koj cov kev xav tau thiab muab cov lus qhia tshaj lij rau koj thiab cov khoom lag luam zoo thiab cov kev pabcuam.
Daim ntawv pov thawj
FAQ
Tib neeg-oriented, Kev Tsim Kho thiab Kev Tsim Kho Tshiab, Kev Sib Koom Tes
Q: 1.Dab tsi txog koj tus nqi?
A: Peb muaj peb lub Hoobkas kom peb tuaj yeem muab tus nqi zoo tshaj rau koj
Q: 2.Koj lub peev xwm ntau lawm yog dab tsi?
A: Peb muaj ob txoj kab ntau lawm thiab ntau tshaj 20 lub tshuab rau kev tsim kho lub tsev hlau vov tsev phaj theem, Kaiping, shearing, dabtsi yog khoov, sib sau thiab txhuas alloy profile ua machinery ntau lawm
Q: 3.Koj lub sijhawm them nyiaj thiab lub sijhawm xa khoom yog dab tsi?
A: Peb lees txais T / T lossis L / C. Thiab Ali kev ruaj ntseg kev lag luam kuj tau txais. Raws li rau lub sijhawm khoom xa tuaj, peb xav tau ua cov phiaj xwm tsim khoom rau txhua qhov kev txiav txim. Feem ntau, nws yuav siv sijhawm 15- 30 hnub tom qab peb lees paub qhov kev txiav txim.
Q: 4.Yuav ua li cas txog cov qauv txiav txim?
A: Peb muab cov qauv dawb
Q: 5.Koj txoj cai tom qab muag yog dab tsi?
A: Peb muab cov khoom zoo tshaj plaws thiab kev pabcuam rau txhua tus neeg siv khoom. Peb yuav muab kev cob qhia online tom qab muag. Koj tuaj yeem tuaj xyuas peb lub Hoobkas.
Q: 6.Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas thiab muaj peb tus kheej cov kab ntau lawm, koj tuaj yeem yuav nrog kev ntseeg siab
Cim npe nrov: Tuam Tshoj anodized txhuas kauj, Tuam Tshoj anodized txhuas kauj manufacturers
