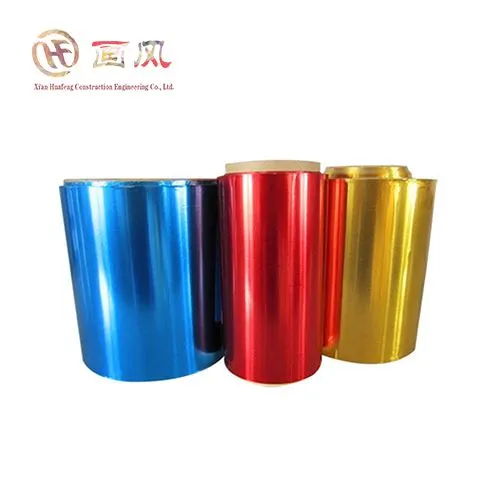

Xim Coated Aluminium Chev

Khoom npe: xim aluminium coil
Hom Lub Npe: HF
Qib: 1000,2000,3000,5000,6000,7000 series
Txheej xim: PE, HDP, PVDF COATING Aluminium coil
Muaj peev xwm muab khoom: 10000 Tuj / hli
Kev pab lub neej: 30- xyoo warranty
Lub sij hawm xa tuaj: 15-20 hnub
MOQ: 3 Tons
Daim ntawv: coil, ntawv, phaj

Xa kev nug

Kev piav qhia

Technical Parameters

Xim coated aluminium coil yog dab tsi?

Xim coated aluminium coilsxa mus rau aluminium coils uas tau kho nrog cov xim txheej los txhim kho lawv qhov kev zoo nkauj thiab muab kev tiv thaiv ntxiv. Cov xim txheej yog feem ntau siv los ntawm cov txheej txheem hu ua coil txheej, qhov twg cov txhuas coils tau pleev xim tsis tu ncua thiab kho nyob rau hauv ib puag ncig ntawm lub Hoobkas tswj. Txoj kev no ua kom cov xim tsis sib xws thiab ua tiav thoob plaws tag nrho saum npoo ntawm lub kauj.

Specification ntawm Xim coated aluminium coil

Qib	A1100, A3003, A3004, A5052 thiab lwm yam.
Thickness	Los ntawm 0.022mm txog 1.5mm
Dav	Los ntawm 1 8 hli mus rau 2 0 0 0 hli
Txoj kab uas hla	Standard txoj kab uas hla: 1200mm Sab hauv txoj kab uas hla: 150mm, 405mm, 505mm, 508mm
Qhov hnyav	Tsawg dua lossis sib npaug rau 3.0 T/roll
Txheej	PE/PVDF
Txheej thickness	PE: ntau dua 18 microns PVDF: ntau dua 25 microns
Nto	Embossed, polished, coated
Advantagefeatures:	Kev ua haujlwm ruaj khov, tiv thaiv corrosion

Muaj 9 series ntawm aluminium alloy qib, ntawm cov 1XXX, 3XXX thiab 5XXX series tau dav siv hauv kev tsim kho.

1XXX series yog 99.9% lossis siab dua purity aluminium; manganese yog lub ntsiab alloy hauv 3XXX series Elements, cov alloys feem ntau tsis tuaj yeem muaj zog los ntawm kev kho cua sov, tab sis lawv lub zog yog ntau tshaj 20% siab dua li ntawm 1XXX series alloys; Lub ntsiab alloy ntawm 5XXX series yog magnesium, uas yog nruab nrab-lub zog los yog siab zog ua hauj lwm hardenable alloy nrog zoo vuam zog thiab zoo corrosion kuj nyob rau hauv marine ambient huab cua.

Aluminium alloys siv nyob rau hauv vov tsev thiab phab ntsa panels nyob rau hauv kev tsim kho teb yog tsuas yog 3XXX series txhuas-magnesium-manganese alloys. Qhov no yog vim 5XXX series alloys kuj nyuaj, thiab ntsug ntug snap-hauv ru tsev panels xav tau ntau yam deformations thaum lub sij hawm tsim khoom, yog li kev ua haujlwm tsis zoo. Cov ntaub ntawv zoo 3XXX series tau dhau los ua thawj qhov kev xaiv ntawm cov ntaub ntawv.

Cov txiaj ntsig ntawm kev siv Xim coated aluminium coil yog dab tsi?

1. Coatings pab tiv thaiv aluminium substrate los ntawm corrosion, ua rau nws haum rau siv nyob rau hauv ntau yam sab nraum zoov thiab hnyav ib puag ncig.

2. Xim Coated aluminium coilstuaj yeem ua tiav nrog ntau yam xim, textures, thiab cov qauv, txhim kho qhov pom kev pom ntawm cov khoom siv rau kev tsim vaj tsev thiab kho kom zoo nkauj.

3.Cov coatings xws li polyester, polyvinylidene fluoride (PVDF), acrylic, los yog epoxy tuaj yeem muab cov khoom siv tshwj xeeb xws li kev tiv thaiv huab cua, UV tiv thaiv, tshav kub reflectivity, los yog anti-graffiti zog, nyob ntawm seb daim ntawv thov.

Xim Coated aluminium coil siv rau dab tsi?

Xim coated aluminium coilnrhiav kev siv dav hauv kev tsim kho kev lag luam rau vov tsev, cladding, thiab facades, qhov chaw sib xyaw ua ke ntawm txhuas lub teeb yuag thiab kev tiv thaiv txheej muab cov kev daws teeb meem zoo thiab zoo nkauj. Lawv kuj tseem siv rau hauv kev tsim cov khoom siv tsheb, cov khoom siv hauv tsev, thiab lwm yam khoom lag luam uas yuav tsum muaj kev sib xyaw ua ke ntawm lub zog, kev tsim, thiab kev zoo nkauj ntawm qhov chaw.
